Designed for slip-controlled lock-up automatic transmissions
Provides smooth shifting and excellent drivability
High viscosity index ensures stable lubrication in all temperatures
Excellent wear control and oxidation resistance for long fluid life
Recommended for Toyota T-IV, GM 9986195, and JWS 3309 applications

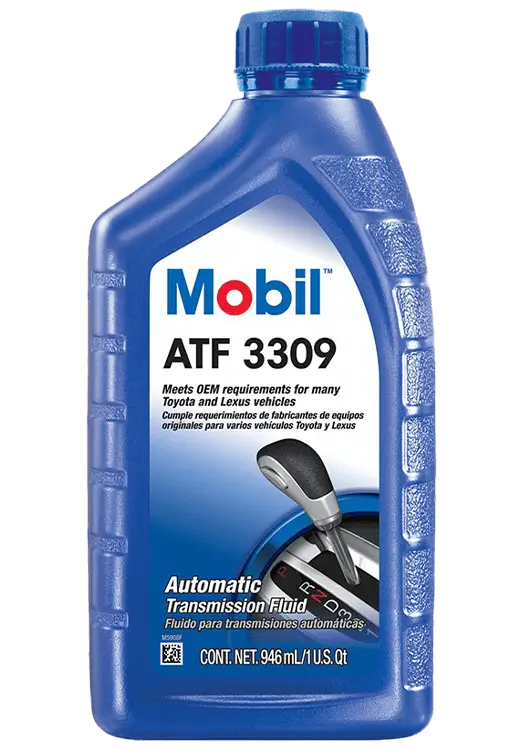

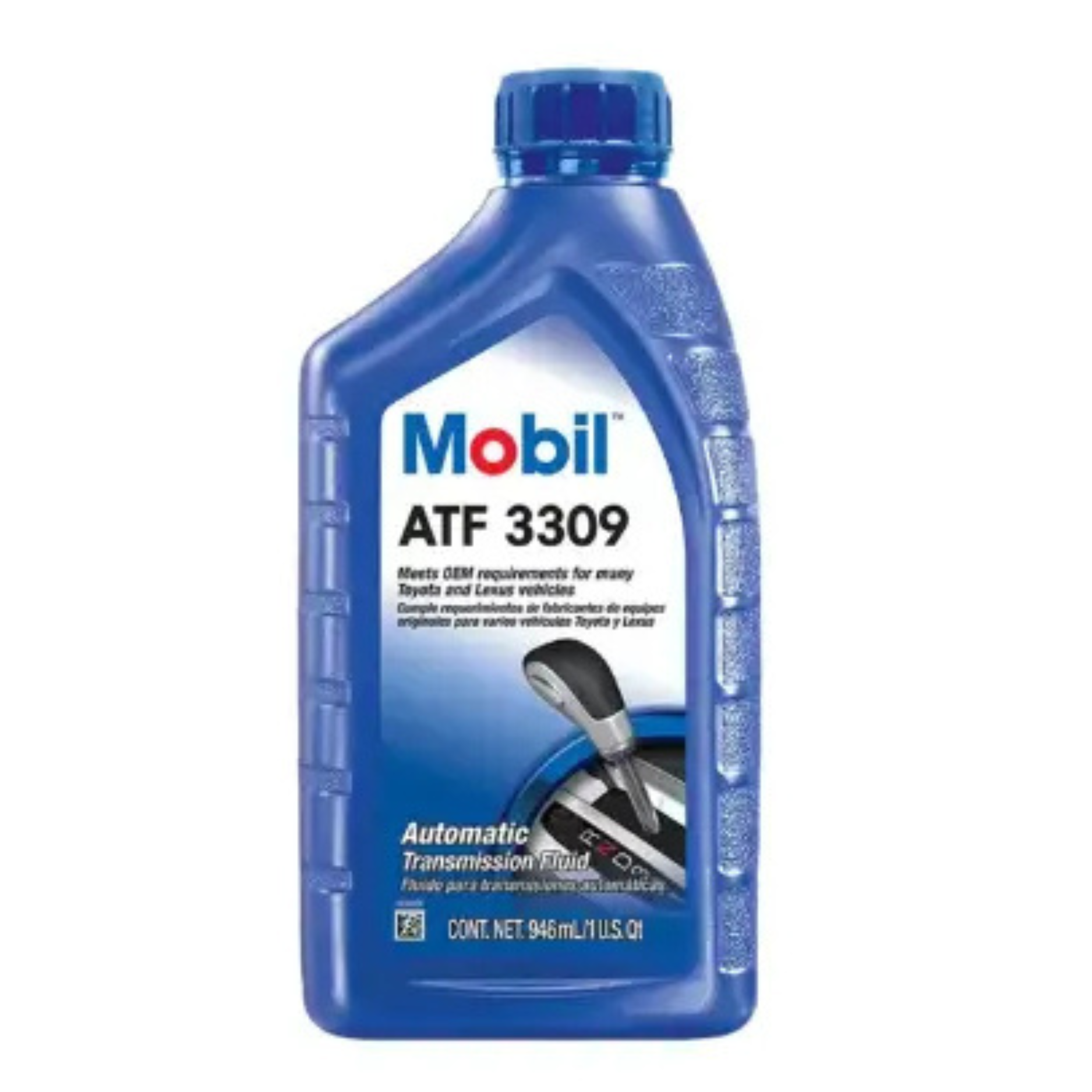

Mobil ATF™ 3309 is an exceptionally high performance lubricant that meets original equipment manufacturers' specifications for use in certain slip-controlled lock-up automatic transmissions. The unique formulation of Mobil ATF 3309 is designed to provide excellent lubrication of transmissions in specified slip-controlled lock-up automatic transmissions. These outstanding performance capabilities translate into significant operational benefits.
Features
Advantages and Potential Benefits
Excellent lubricating characteristics
Quiet operation and smooth shifting in approved transmissions
Controlled friction properties
Efficient power transmission across all normal temperature ranges
Shudder control
Provides excellent vehicle driveability
Excellent wear control
Helps extend transmission life
Oxidation resistance
Long fluid life
High viscosity index
Ensures adequate lubrication in both high and low temperatures
Foam resistance
Stable and reliable performance
Corrosion protection
Superb protection against rust and corrosion
Seal compatibility
Compatible with synthetic rubber seal materials
Applications: Mobil ATF 3309 is recommended for use in transmissions requiring fluids of JWS 3309 or GM 9986195 quality levels. Also suitable for service fill where Toyota T-IV or T4, T-III or T3 are specified. Refer to the owner's manual for the exact fluid recommendation.
Specifications and Approvals:
Recommended for: AUDI G-055-025-A2, GM 9986195, TOYOTA T-IV
Meets or exceeds: FORD WSS-M2C924-A
Properties and Specifications:
Brookfield Viscosity @ -40°C, mPa.s, ASTM D2983
13000
Color, Visual
Red
Density @ 15°C, g/cm³, ASTM D4052
0.852
Flash Point, °C, ASTM D92
>185
Kinematic Viscosity @ 100°C, mm²/s, ASTM D445
7.1
Kinematic Viscosity @ 40°C, mm²/s, ASTM D445
33
Pour Point, °C, ASTM D97
<-45
Viscosity Index, ASTM D2270
181
Health and Safety: Use only as directed. Dispose responsibly. All trademarks used herein are trademarks or registered trademarks of Exxon Mobil Corporation or one of its subsidiaries unless indicated otherwise.
